Apparel Size Grading: How One Approved Sample Becomes a Full Size Run

A streetwear label in Manchester signed off on a size M hoodie sample in March. The fit was exactly what they wanted — 320 GSM fleece, boxy through the body, sleeves that stopped at the wrist bone. They ordered 400 pieces across S through XXL and waited.

When the cartons landed, the M pieces matched the sample perfectly. The XXL did not. The body had grown four inches at the chest, but the sleeves had only grown half an inch, so the largest customers got a garment that fit across the shoulders and ended three inches short at the wrist. Nobody had done anything malicious. The factory had simply applied a generic grade because the brand never supplied a graded spec, and apparel size grading is the step where that omission becomes 80 unsellable hoodies.

Grading is the least glamorous part of product development and the one most likely to quietly ruin a production run. It is not design, it is not sewing, and it never appears in a lookbook. It is arithmetic applied to a pattern — and if the arithmetic is wrong, every size except the one you fitted comes back wrong.

What Apparel Size Grading Actually Is

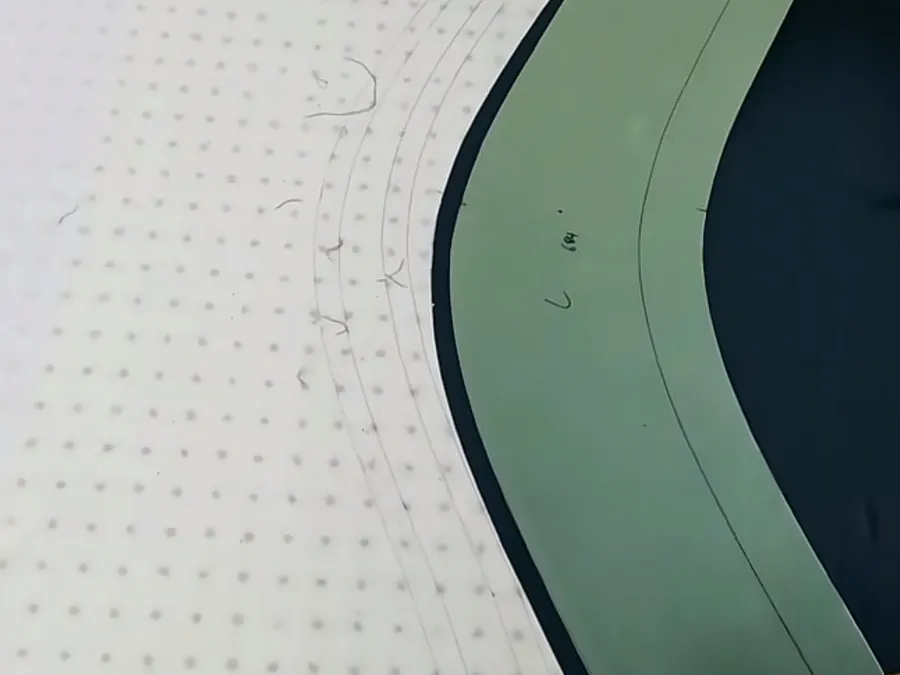

Grading is the process of taking one approved pattern — the base size — and scaling it up and down to create the rest of the size run. It is not photographic enlargement. You cannot scale a size M pattern by 110% and get an L, because the human body does not grow proportionally. Between an M and an L, the chest might gain two inches while the neck gains a quarter inch. Each measurement point moves by its own amount.

Those amounts are called grade rules — at this point of measure, each size step changes by this much. A complete set across every point of measure is what turns one pattern into a size run. Written down in a table, it becomes a graded spec sheet: the document your factory needs and the one most first-time brands never send.

Who fills that gap matters. If you do not supply grade rules, the factory uses its own house grade — reasonable, but built for the styles that factory usually makes. Apply a house grade built for fitted womenswear to an oversized unisex hoodie and the result is technically graded and commercially wrong.

How Grade Rules Work in a Real Size Run

Choosing the Base Size

Everything starts with the base size, sometimes called the sample size. This is the size you actually fit on a body or a dress form, the one you iterate through the sampling process until it is right. Every other size is derived from it mathematically.

Pick the base size at the middle of your intended run, not at the edge. If you sell XS through XXL, fit a size M or L. Grading two steps in each direction from the center keeps cumulative error small. Fit an XS and grade five steps up to XXL and every rounding decision compounds in the same direction — which is exactly how a size run ends up with wearable small sizes and unwearable large ones. If sales history shows one size dominating, weight the choice toward it.

Grade Rules by Point of Measure

A point of measure is any specific place a garment gets measured: chest width, body length, sleeve length, shoulder width, neck width, armhole depth, hem opening, cuff width. A tee might have eight. A structured jacket might have twenty-five.

Each one needs its own rule. The common mistake is grading only the obvious three — chest, length, sleeve — and letting the factory infer the rest. Inference is where necks come out wrong. On a knit crew tee, neck width typically grows only an eighth to a quarter inch per size, and a proportional grade produces an XXL with a neckline wide enough to slip off the shoulder.

Write the rule for every point of measure your tech pack lists. If a point of measure does not change between sizes — some drawcord lengths and pocket sizes are deliberately constant — write that down explicitly as a zero grade. A blank cell reads as an oversight; a zero reads as a decision.

Typical Increments You Should Expect

Grade increments vary by category, market, and fit intent, but a few conventions are stable enough to use as a sanity check. In a standard adult size run, chest or bust commonly grades one to two inches per size step, body length half an inch to one inch, sleeve length a quarter to half an inch, shoulder width a quarter to half an inch, and neck width an eighth to a quarter inch.

Larger sizes often need a bigger step than smaller ones. Many brands grade one inch per step through the middle of the run and widen to one and a half or two inches above XL, because body measurements spread out at the upper end. A run that uses a single flat increment from XS to 3XL will fit correctly in the middle and poorly at both extremes.

None of these are laws — they are the range a factory expects to see. If your graded spec falls far outside them, that is worth a second look before cutting.

Why Knits and Wovens Don’t Share Grade Rules

Knit fabric stretches and recovers. Woven fabric mostly does not. That single difference changes the grading math.

A cotton jersey tee at 180 GSM has enough mechanical stretch to absorb a modest grading error — a half inch of missing chest width disappears into the fabric’s give, and the wearer never notices. The same half inch missing from a woven poplin shirt is a button that pulls. Woven styles need tighter grading and more generous ease built into the base pattern, because the fabric will not cover for you.

Stretch content complicates it further. A legging at 80/20 nylon-spandex is graded with negative ease, meaning the garment is smaller than the body it fits. Grade it with positive-ease rules and the largest sizes lose their compression — the XXL becomes a loose pant, which is a fit failure even though every measurement is technically larger than the size below it.

Where Grading Quietly Breaks

Four places account for most grading failures we see arrive as fit complaints.

The armhole is first. Armhole circumference and depth have to grade together, and the sleeve cap has to grade to match — when the body armhole grows and the cap does not, the sleeve either binds or puckers when set. This is the most common grading defect in outerwear. Neck openings are second, for the reason above: they grade far less than intuition suggests.

Placement of applied details is third. A chest print centered on a size M is not centered on a size XXL unless print placement is graded too — and the same holds for pocket, embroidery, and label position. Graded placement points belong in the tech pack alongside graded measurements.

Graphic scale is fourth, and it is a decision rather than a defect. Some brands scale the print with the garment, others hold it constant across all sizes, and both are defensible. What causes trouble is not deciding, because then the factory decides for you and the answer may change between runs.

How to Verify a Factory’s Grading Before Bulk

You do not have to take grading on faith, and you should not. Three checks catch nearly everything.

First, ask for the graded spec sheet back before bulk cutting — not your version, theirs. A factory that has genuinely graded your pattern can produce a table covering every point of measure across every size. If your own document comes back with no numbers added, the grading has not been done yet.

Second, order a size set — one physical garment in each extreme size plus the base, typically S, L, and XXL. Measuring three real garments catches errors a spreadsheet hides, because it shows what happens when a grade rule meets real fabric behavior and real sewing tolerance. This is the highest-value sample you can order and the one brands most often skip to save two weeks.

Third, confirm the measurement tolerance. Every factory works to a tolerance — commonly half an inch on chest width and a quarter inch on shorter points of measure for knits. Tolerance stacks with grading, so if your grade step is half an inch and your tolerance is half an inch, two adjacent sizes can legitimately overlap.

When your grade step is small, you need the tolerance tightened, and that has to be agreed in writing before production, not argued after. Our quality control process measures graded points of measure against the approved spec on a sampling basis through the run, not only at final inspection.

International standards exist for the underlying body data, and they are worth knowing about even though few small brands buy them outright. ISO 8559-1:2017 defines how body measurements should be taken and named, which is why factories in different countries can talk about “chest girth” and mean the same landmark. ASTM D5585-21 publishes body measurement tables for the adult female misses figure type, which is a common starting reference for brands building a size chart from scratch rather than copying one.

Grading Increments Compared Across Categories

Category	Chest / bust per size	Body length per size	Sleeve length per size	Note
Knit tee (140–200 GSM)	1–2 in	0.5–1 in	0.25–0.5 in	Fabric stretch absorbs small errors
Hoodie / sweatshirt (280–400 GSM)	2 in	0.75–1 in	0.5 in	Armhole and cuff must grade together
Woven shirt	1–1.5 in	0.5–0.75 in	0.25–0.5 in	No stretch to hide error; tighter tolerance needed
Legging (negative ease)	0.75–1 in	0.5–1 in	n/a	Compression must hold across the full run
Oversized / boxy fit	2 in	0.5 in	0.25 in	Length often grades less than the body

Worth noticing: length grades less than width almost everywhere. Brands new to grading assume the opposite, which is how oversized styles end up looking cropped at the top of the run.

How PRP Apparel Handles Size Grading

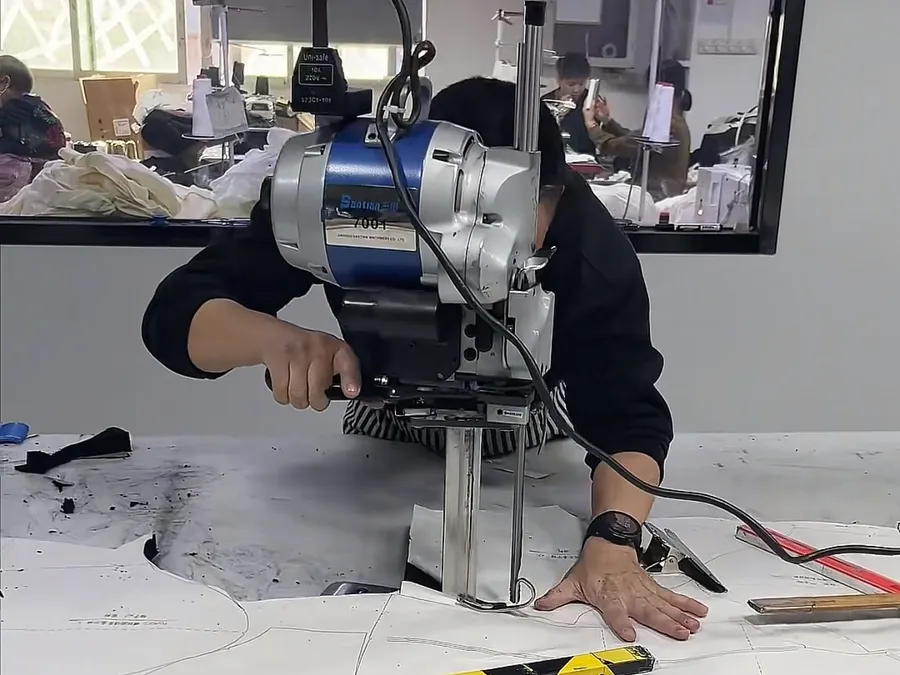

Pattern making and grading are done in-house at our Dongguan factory rather than sent to an outside pattern room, which matters mainly for speed of correction — when a size set comes back outside spec, the person who wrote the grade rule is in the same building as the person who cut it. Grading is included in our pattern making service rather than quoted separately.

If you arrive with a graded spec, we grade to your numbers and send it back for written approval before cutting. If you arrive with a fit sample and no grade rules — which is most first-time brands — we propose a grade for your category and put it in front of you as a table to approve or change. What we will not do is grade silently and let you discover the result in the shipment.

Sample lead time runs 12–15 days from order confirmation, at $80–$250 per sample set depending on complexity, with 1–3 sample rounds standard. Bulk production is 35–45 days from approved sample, and our minimum is 50 pieces per style — which is low enough that a full size run is genuinely testable on a first order rather than something you commit to blind.

Size Grading Reference Table

Step	What it produces	Who signs off	Typical timing
Base size selection	The size you fit and iterate	Brand	Before sampling
Fit sample approval	One approved garment	Brand	12–15 days per round
Grade rule table	Increment per point of measure	Brand approves factory’s proposal	2–3 days
Graded spec sheet	Full measurement table, all sizes	Brand, in writing	2–3 days
Size set samples	Physical garments at run extremes	Brand measures and approves	12–15 days
Bulk cutting	Graded markers, all sizes	Factory, against approved spec	35–45 days total

Frequently Asked Questions

What is apparel size grading?

Apparel size grading is the process of scaling one approved base-size pattern up and down to create a full size run. Each point of measure — chest, length, sleeve, neck, armhole — changes by its own defined amount per size step, called a grade rule. It is not proportional enlargement of the whole pattern.

Do I need to supply grade rules, or will the factory create them?

Either works, but one of you has to decide deliberately. If you supply a graded spec sheet, the factory grades to your numbers. If you do not, the factory applies its house grade, which may have been built for a different category and fit intent than yours. Ask to approve the grade table in writing before cutting.

What is a size set sample and is it worth the time?

A size set is one physical garment in each extreme size plus the base — commonly S, L, and XXL. It catches grading errors that a spreadsheet cannot, because it shows how grade rules interact with real fabric behavior and sewing tolerance. It adds roughly two weeks and is the highest-value sample most brands skip.

Why do knits and wovens need different grade rules?

Knit fabric stretches and recovers, so it absorbs small grading errors that would be visible in a woven. Wovens need tighter grading and more ease built into the base pattern. Stretch garments graded with negative ease, such as leggings, need their own approach again — a positive-ease grade destroys compression at the top of the run.

How much does chest measurement usually change between sizes?

One to two inches per size step is the common range for adult sizes, with hoodies and oversized styles typically at the upper end and fitted woven shirts at the lower end. Many brands widen the step to 1.5–2 inches above XL because body measurements spread out at the top of the range.

Grading is cheap to get right at the spec stage and expensive to fix after cutting. If you have an approved fit sample and no grade rules yet, send us the sample measurements and target size range through our inquiry form and we will come back with a proposed grade table you can review before anything is cut.
